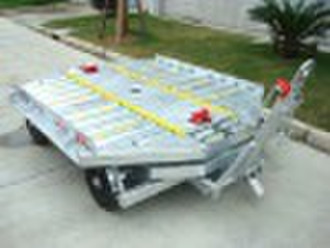

promotional 1.6T container loading trailer
Yanfen Fu
Contact person
Basic Information
| Place of Origin | Shanghai China (Mainland) |
|---|---|
| Brand Name | SH |
| Model Number | SH1.6T006 |
1.6T Luggage TrailerTechnical parameterOverall dimension3450x1790x560mmHeight of the handling platform508mmDeadweigh776kgLoad capacity1600kgWheel base1580mmTyre4.00-8Max vehicle speed25km/hTurning radius2300mmSuitable Type of containerLD1, LD3Loading diameter76mm Overview Elaborate design, raliable and durable, reasonable and good shape. Roller Seamless steel pipes, gavanised, make sure the container can smoothly move Gap bridge Making the containers move between two trailers possible Turntable welded of heavey duty channel steel and thick steel, 360°rotation. Byfootboard, fixed at the postion of 90° Tyre Rubber solid tyre 400-8 type Rear tow-hook with self-locking device, convenient and safe to connected with the other trailer Steering mechanism Bearing is installed on the front bridge, makes the trailer turn legerity. Braking mechnisim Control by drawbar, automatically brake Surface disposal zinc plated or zinc plated+finish paint after the integral shot-blasting.
Delivery terms and packaging
Packaging Detail: Loose package Delivery Detail: 40 days for 30 container trailers
Port: Shanghai
Payment term
Letter of credit
Telegraphic transfer
-
Payment Methods
We accept:
